Ice and Easy — The Next Level Hybridisation

Ice and easy

The demanding conditions of the Baltic Sea and the Gulf of Bothnia are plain sailing for MS Viikki, the world’s first LNG-fueled Bulk Carrier, thanks to an innovative delivery from WE Tech. The solution, built around WE Tech’s variable frequency drive technology–WE Drive™ and The Switch direct drive permanent magnet shaft generator, helps the vessel achieve ice-class 1A propulsion, while still slashing fuel consumption, costs and emissions. It is a game-changer for ice-class operations.

MS Viikki is turning heads within shipping. The 25,600 dwt, self-discharging, handysize bulker was delivered to Finnish owner ESL Shipping in September 2018 from Jinling Shipyard, China. With three holds and a cargo capacity of over 33,000 m3, along with three electro-hydraulic cranes, the ship is both state-of-the-art and highly functional, but what’s ‘under the hood’ is generating the most attention.

(MS Viikki: the world’s first LNG-fueled bulk carrier. Copyright: ESL Shipping)

Demanding high standards

ESL Shipping is the leading carrier of dry bulk cargo on the Baltic Sea and the Gulf of Bothnia – an operating area that is both harsh, with significant winter ice coverage, and protected, as a sulfur emission control area (SECA). The company’s commitment to both optimal efficiency and high environment standards led it to consider an innovative range of solutions for MS Viikki and sister ship MS Haaga, both of which are designed in accordance with the EEDI (Energy Efficiency Design Index). LNG proved to be the most attractive fuel option, enabling the vessel design to cut CO2 emissions by more than 50% compared to traditional heavy fuel alternatives.

Sailing in rough ice conditions is generally considered to be the most demanding sailing conditions for vessels, since sea ice can cause rapid changes in the Main Engine load. Therefore, the propulsion units need to be flexible, responsive and deliver optimal power per unit, while still meeting the most stringent environmental criteria. This is when WE Tech and Yaskawa Environmental Energy / The Switch technology came to the fore.

Flexible performance

The WE Tech solution utilizes WE Drive™, the variable frequency drive technology, together with the market-proven The Switch PMM 1000 Direct Drive Permanent Magnet Shaft Generator.

WE Tech Solution Three which is implemented on these vessels comprises Economical operations (PTO) and Boost mode (PTI). The Solution One, Economical operations (PTO) allows mechanical energy from the propeller shaft to be converted to electrical energy – the most energy-efficient way to generate power in a vessel.

Mårten Storbacka, Managing Director of WE Tech, explains more: “The solution delivered offers different operation modes according to the vessel needs.”

Using the Power Take Out (PTO) mode, WE Drive™ enables propulsion machinery to operate in combinator/variable speed, while the direct-drive permanent magnet shaft generator produces electrical power up to 700 kW for the vessel’s electrical network. This delivers significant savings by drastically decreasing the operating hours of the auxiliary generators – saving fuel and resulting emissions – as well as reducing maintenance requirements.

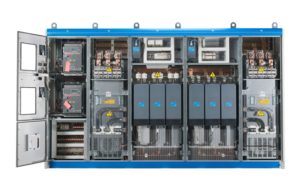

(The WE Drive solution increases efficiency by utilising variable frequency drive technologies in shaft generator systems.)

Boosting power

When it comes to sailing smoothly through ice, the WE Drive™ has another trick up its sleeve.

“For the most demanding conditions, Power Take In (PTI) mode can be selected,” Storbacka notes. “This converts auxiliary generator power to propulsion power by employing the direct-drive permanent magnet shaft generator as an electrical motor. In doing so, an added 1250 kW of mechanical power can be harnessed to boost the propulsion system, ensuring effective operation in Ice Class 1A.”

As such, it is both a green and powerful solution for forward-thinking, responsible shipowners and operators working in harsh environments worldwide.

Further, the Ice-boost Solution Three allows vessels to meet the Energy Efficiency Design Index (EEDI) requirements while still have sufficient power for sailing in icy conditions. The WE Tech Solution Three, Boost mode, is the perfect way to successfully handle the balancing act of meeting both EEDI requirements and high Ice Class.

“We aim to achieve the highest levels of energy efficiency in our segment with WE Tech’s technical supports and cooperation. We are committed to greener technology for the future,” says Mr Mikki Koskinen, Managing Director of ESL Shipping, “WE Tech’s energy efficiency solutions bring a significant positive effect on the vessel’s operation and environmental footprint, which considerably improves our profitability and competitiveness.”

Smart sustainability

WE Tech’s hybridisation solutions displays proven and highly reputed technologies in operation of 30 vessels across a variety of shipping sectors, including 22 vessels with the support of The Switch Permanent Magnet Shaft Generators. It has a range of qualities that Juha Reinilä, Key Account Manager, Marine, Yaskawa Environmental Energy / The Switch, believes can help shipowners like ESL Shipping plot a future-proof route to enhanced sustainability and business performance.

“Environmental and commercial sustainability go hand in hand,” Reinilä comments. “Greater energy efficiency leads to enhanced cost control, with lower OPEX, and, thanks to lower consumption, reduced emissions.”

The Permanent Magnet machines at the heart of this solution generate energy for vessel systems in a way that matches with shipping’s push for less waste and increased efficiency. The mechanical energy from the propeller shaft is captured and converted to green electrical energy for the vessel. As in the case with MS Viikki, it can also be used to supplement engine power for the most demanding operations.

“It’s simple and effective, allowing owners such as ESL Shipping to run more profitable vessels. This is at the heart of everything Yaskawa Environmental Energy does – creating advanced drive train technologies to enable a more sustainable industry, for all of shipping’s stakeholders,” Reinilä says.

Leading the way

MS Viikki, the world’s most environmentally friendly bulk carrier, is now operating in the Baltic Sea. Upon leaving the Chinese yard, the 160-meter-long vessel made its way to Japan to collect its first cargo of raw materials before sailing to Finland via the Northeast passage. This shortened the journey by three weeks, compared to routing via the Panama Canal, and cut emissions by 40%.

ESL Shipping is the forerunner within a competitive segment serving the domestic Finnish market. Due to the country’s geographical position, sea transport is the most cost-efficient logistics solution, with shipping accounting for 90% of Finland’s exports and 80% of imports.
